10 Year Battery Operated Heat Alarm (CAVIUS Wireless Range)

Product Code:
3107 CAVTH10WF
Core Technology
10 Year Battery
Wireless Interconnectivity
3107-CAVTH10WF-RK

The CAVIUS Wireless Family Heat Alarm detects fast, flaming fires in areas not suitable to install smoke alarms; kitchens, garages, workshops and laundries.

Using state-of-the-art Danish technology; the Heat Alarm monitors changes in ambient room temperature and sounds if there is a rapid, constant temperature increase or ambient temperature reaches >58°C.

The Wireless Family alarms interconnect to each other using innovative Radio Frequency technology so when one alarm activates, they all sound.

The battery-operated CAVIUS Wireless Family alarms require no wiring. Setting up and interconnecting your alarms is a simple 2-minute process.

Once connected; when one alarm starts to siren, it will send out a 360-degree signal, all other CAVIUS Wireless Family alarms in range will also start to siren.

The range between alarms depend on the building materials and should be tested in each individual case.

Using innovative, automated radio frequency technology, our Wireless Family alarms sync up – so no matter where a fire is detected, all alarms sound, giving your family vital extra minutes for evacuation.

Features

  • 10 YEAR long-life battery
  • SOUND LEVEL 85db(A) at 3 meters
  • NEW RF TECHNOLOGY allows the ability to connect up to 32 Wireless Family alarms
  • INTELLIGENT TEST BUTTON ensures both the thermistor and software are functioning
  • 10 MINUTE hush button
  • 30 DAY low battery alert
  • EASY INSTALLATION with the unique smart-clip ceiling mechanism

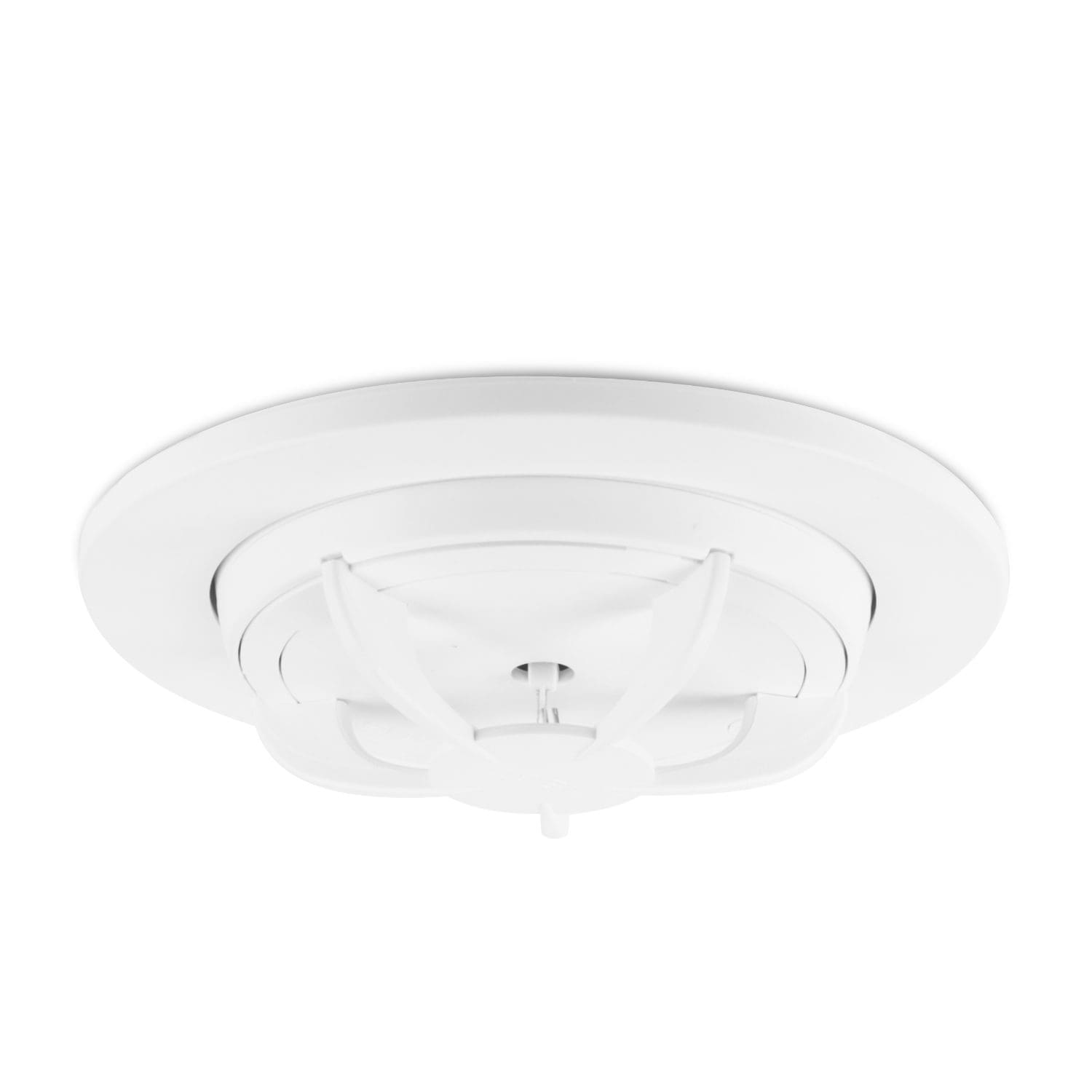

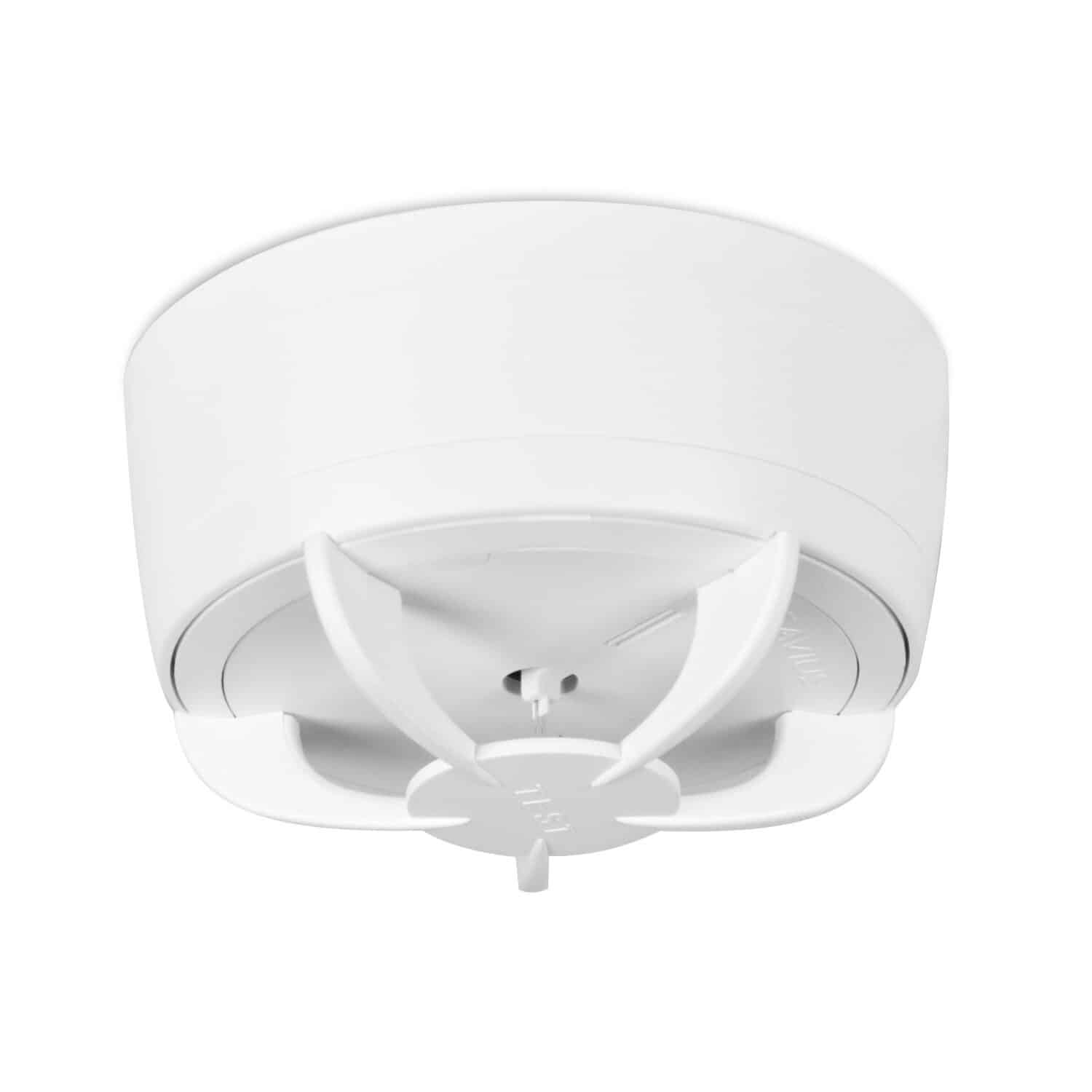

  • CEILING OR WALL INSTALLATION – There are two installation options available – recessed and flush mount. Profile: 15mm (Recessed) 38mm (Flush)
  • BS5446-2:2003 certified, NZ Building Code and NZS 4514:2021 compliant
  • CONNECTS with all CAVIUS Wireless Family products (Product Codes: 2203 CAVMP, 2107 CAV10WF, 2117 CAV10WFBK, 3107 CAVTH10WF, 9002 CAVSR, 9005 CAVRI, 2104 CAV5WF, 3104 CAVTH5WF) and SmartSense SmartHub and CAVIUS app (Product Code: 02200).

Technical Specifications

  • SENSOR TYPE: Thermistor Heat detection
  • BATTERY: 2 x Huiderui Lithium CR123A 3V, 2800mAh
  • INTERCONNECTED RADIO FREQUENCY: 926.365 MHz
  • RANGE: Maximum 100m in plain line of sight
  • VISUAL INDICATOR: Activated alarm’s LED will flash
  • OPTIMAL TEMPERATURE OF FUNCTION: +4ºC to +38ºC
  • MAXIMUM HUMIDITY: +95% Rh non-condensing
  • DIMENSIONS: 78mm diameter
  • CERTIFICATIONS: • BS5446-2:2003 • RoHs  • Reach • RCM

Investing where it counts

CAVIUS uses only the highest quality components to ensure your alarm is reliable, stable and 100 per cent operational throughout its 10-year lifespan.

Introducing CORE Technology

CAVIUS has spent 10 years refining the science within our smoke alarms. CORE Technology is the first in the world to stack the components, within a perfectly proportioned chamber, to create a significantly smaller smoke alarm with much more precise signal processing.

OPTIMAL CHAMBER SIZE

Thanks to our world-leading CORE technology, the chamber in our photoelectric smoke alarms is the optimum size for early detection of smoke and fewer false alarms

BESPOKE SOFTWARE

The software in the CAVIUS smoke alarm includes a fire detection algorithm with features similar to that found in expensive analogue detection systems

CUSTOM COMPONENTS

CAVIUS alarms use only the highest quality components to ensure quality, reliability, stability and to ensure products are 100% operational during their lifetime.

INCREASED ACCURACY

CAVIUS alarms have two levels of mesh screening to minimise insect and dust contamination and additional humidity protection – alleviating the potential for nuisance alarms.
